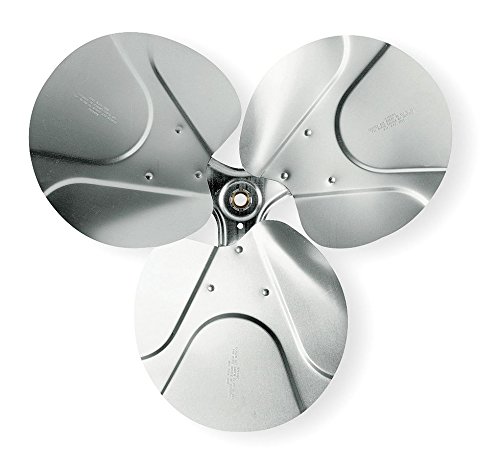

16-Inch Dayton Fan Blade - 2C358 Replacement Part for Industrial & Commercial Cooling Systems

Product Description

Air Circulator and Exhaust Fan Aluminum Replacement Propellers No. of blades: 3 CW rotation facing discharge Embossed aluminum blades and spiders for strength and rigidity Hubs include set screws (hub on intake side) For low static pressure applicationsNote: Air deliveries based on standard test codes of AMCA. When used in system over 0.250" SP, increase motor HP to next larger size. Item: Propeller Type: Replacement Propeller Dia. (In.): 16 Bore Dia. (In.): 3/8 Number of Blades: 3 Pitch (Deg.): 18 Blade Material: Aluminum Rotation: CW Facing Discharge Required HP @ Higher RPM: 1/15 Required HP @ Lower RPM: 1/40 RPM Low: 1050 RPM High: 1550 Max. RPM: 1725 CFM @ 0.000-In. SP: 1486/1007 CFM @ 0.125-In. SP: 1234/613 CFM @ 0.250-In. SP: 954/459 Blade Height (In.): 2-5/16 Blade Width (In.): 7 Remarks: View Catalog Page For Better Selection Criteria For Use With: Exhaust Fans and Circulators
